Gigabyte B450M K DDR4 M-ATX Motherboard

Gigabyte B450M K DDR4 M-ATX Motherboard

4.8 (2,847)
Rs. 0.00

Features:

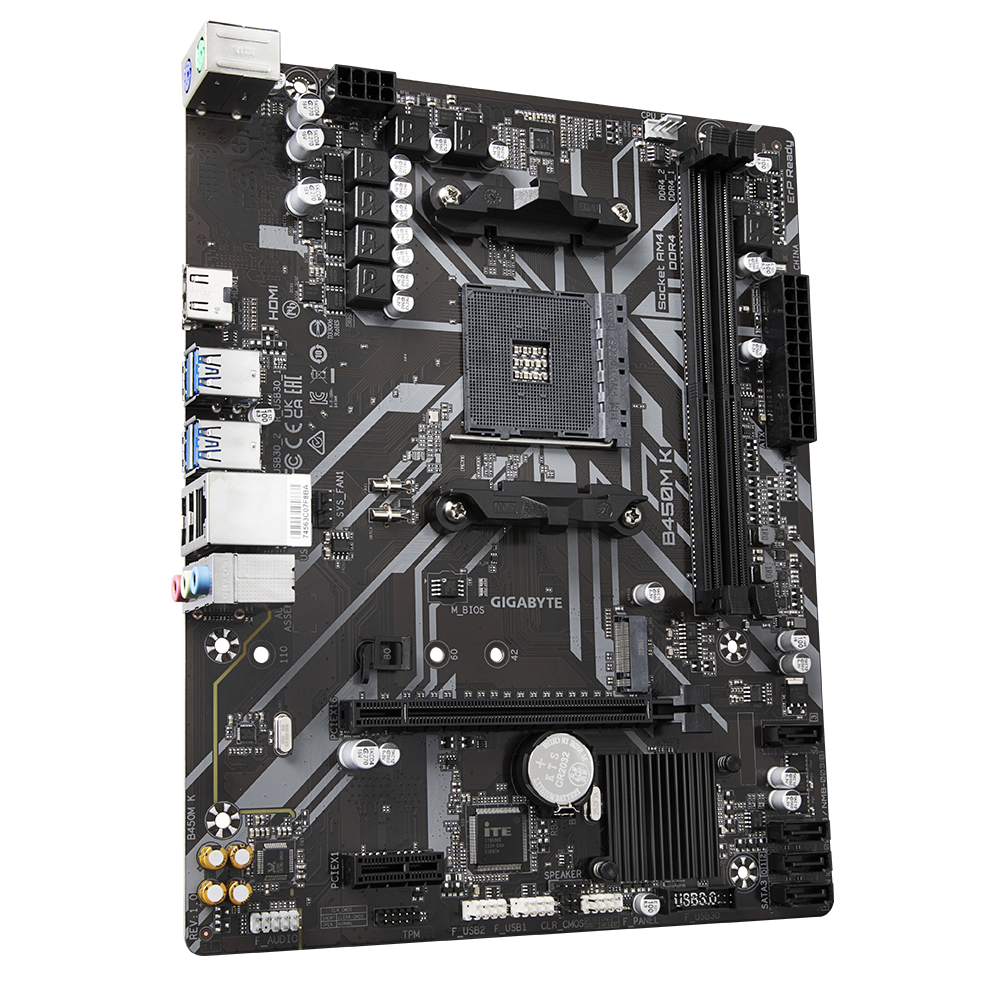

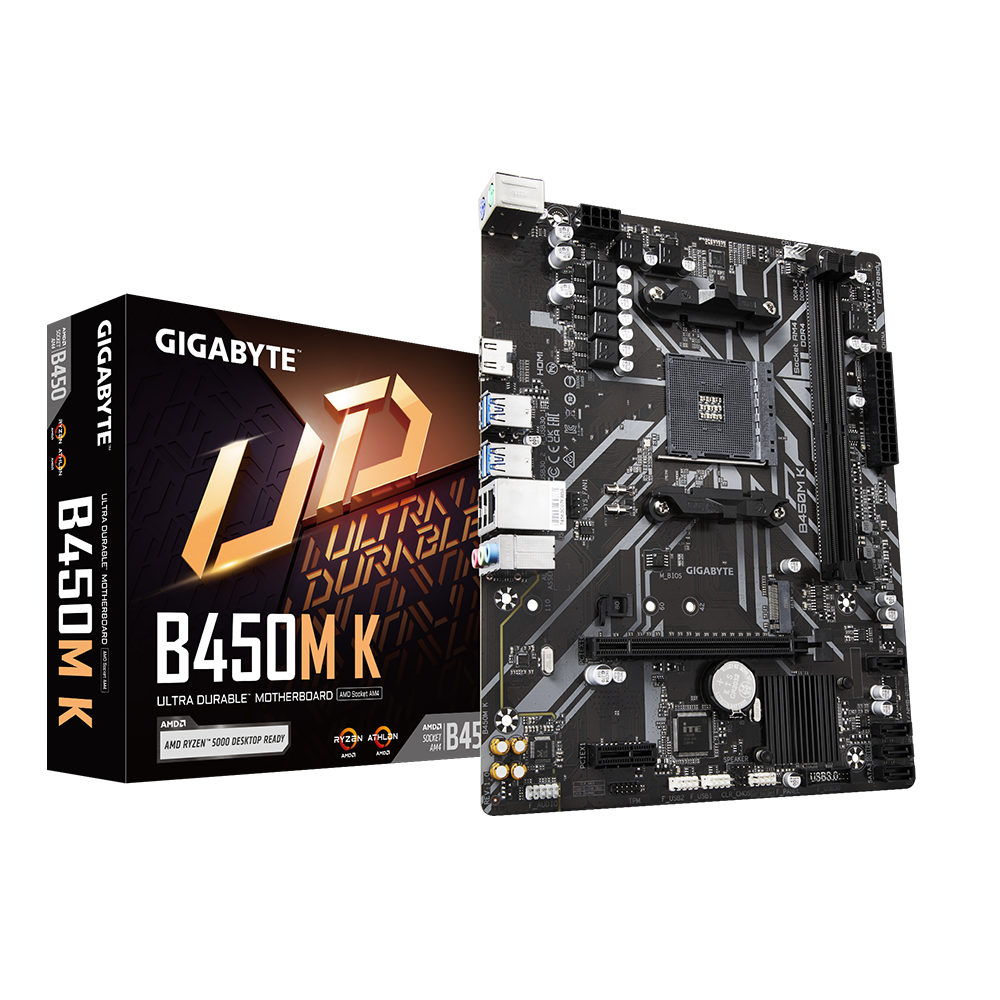

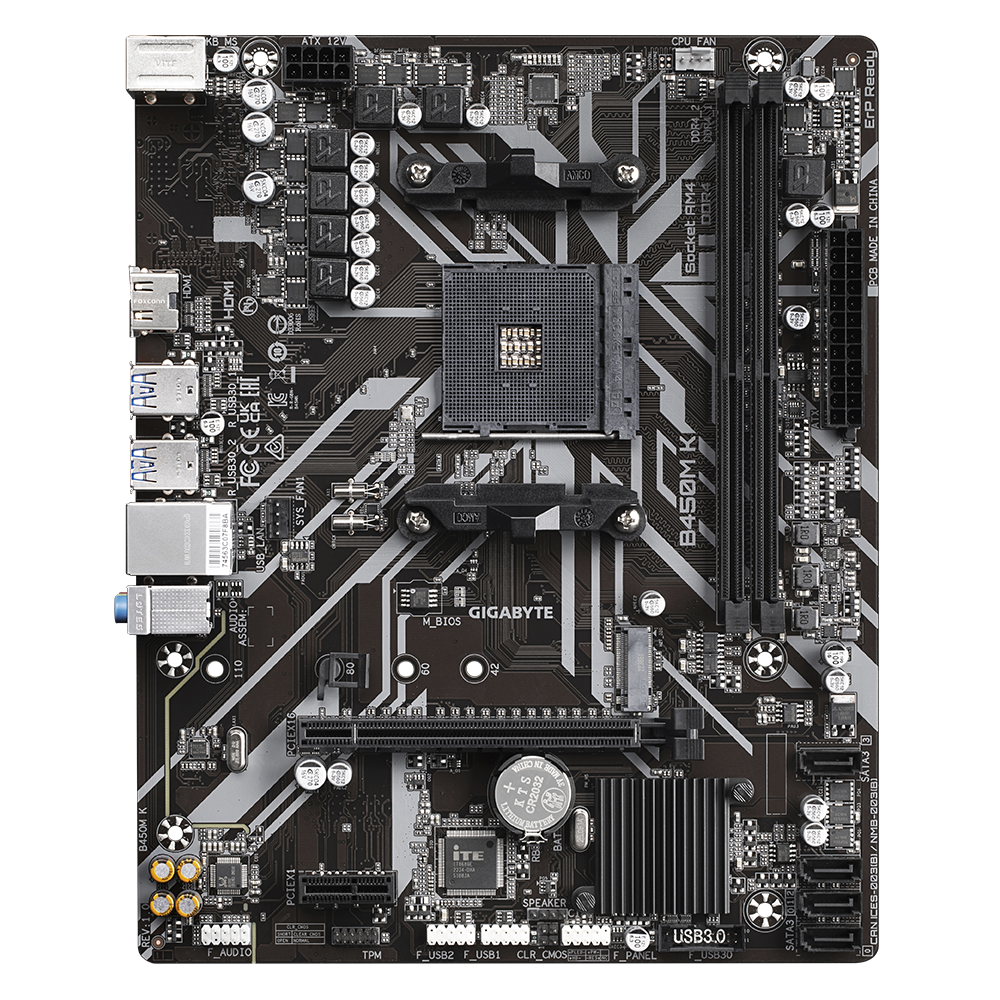

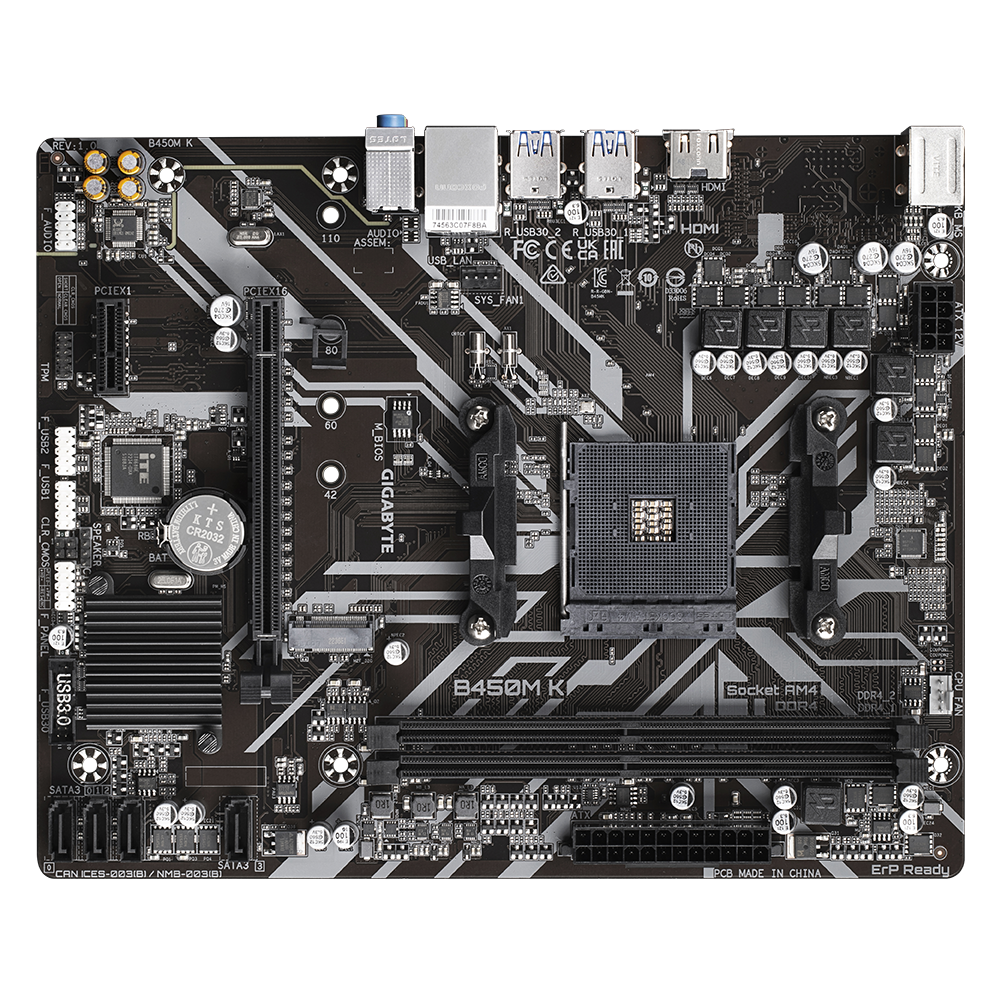

AMD B450 Ultra Durable Motherboard with GbE LAN and Bandwidth Management, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor Design

  • Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen / 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • GbE LAN with Bandwidth Management
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
  • GIGABYTE APP Center, Simple and Easy Use

Specifications:

Model B450M K
CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 4000 G-Series Processors/ 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation Ryzen with Radeon Vega Graphics processors/ 1st Generation Ryzen with Radeon Vega Graphics processors/ Athlon with Radeon Vega Graphics Processors
Chipset AMD B450
Memory
  • Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
  • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics

Integrated Graphics Processor:

  • 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB
Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots

CPU:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1
Storage Interface

CPU:

1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10
USB

CPU:

4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x speaker header
  • 1 x Clear CMOS jumper
  • 1 x chassis intrusion header

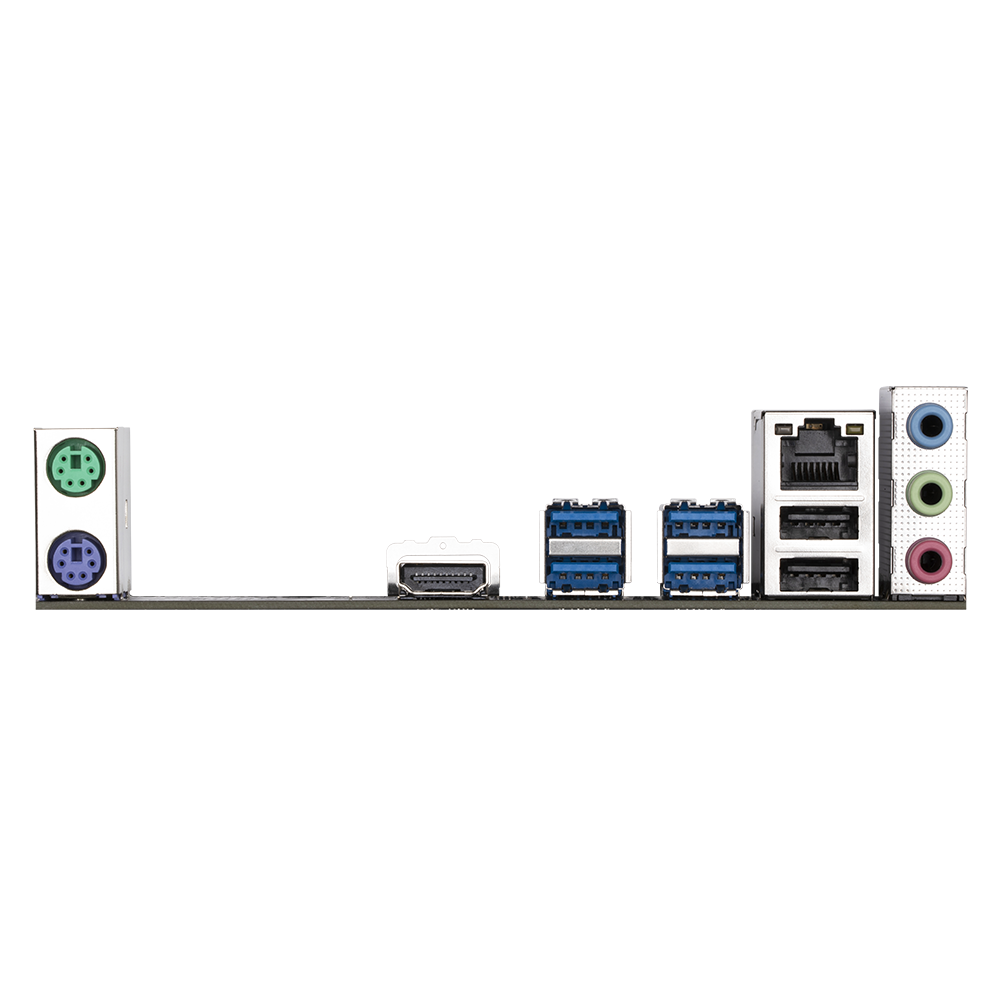

Back Panel Connectors
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
  • 4 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
I/O Controller iTE I/O Controller Chip
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Fan fail warning
  • Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
  • 1 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  • Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
  • Support for Q-Flash
  • Support for Xpress Install
Bundled Software
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
Operating System
  • Support for Windows 11 64-bit
  • Support for Windows 10 64-bit
  • Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor Form Factor Š Micro ATX Form Factor; 23.3cm x 19.8cm
Warranty 3 Years
Note

Image used for representation purposes only.

Features, Price, Specifications are subject to change without notice.
